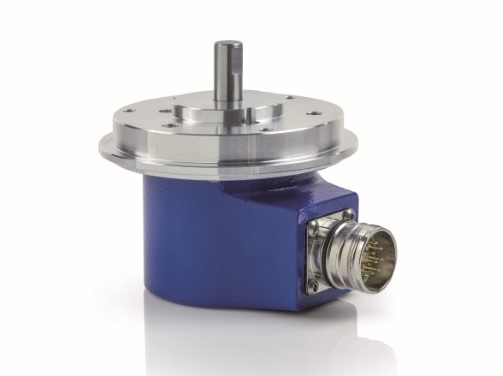

Description of EAR 90-115 A
Solid shaft EAR 90 – EAR 115 (ø 90-115 mm) series of optical singleturn absolute encoders, with Bit parallel or SSI electronics. This series is designed for applications that require excellent accuracy, even in extended linear displacements, as well as mechanical and electronic features that ensure a great performance also in the most difficult environments.
| Technical features | |
|---|---|
| Tipology | Rotary with bearing |
| Category | Singleturn absolute |
| Mechanics | Albero sporgente |
| Technology | Optical |
| Size [mm] | 115, 90 |
| Shaft [mm] | 10, 9,52 |
| Singleturn max resolution [bit] | 25 |
| IP | 65, 67 |
| Output interface | Parallel, SSI |
| Markings / Certifications | CE / UKCA, UL / CSA |
| Operating temperature [°C] | -40, 100 |
