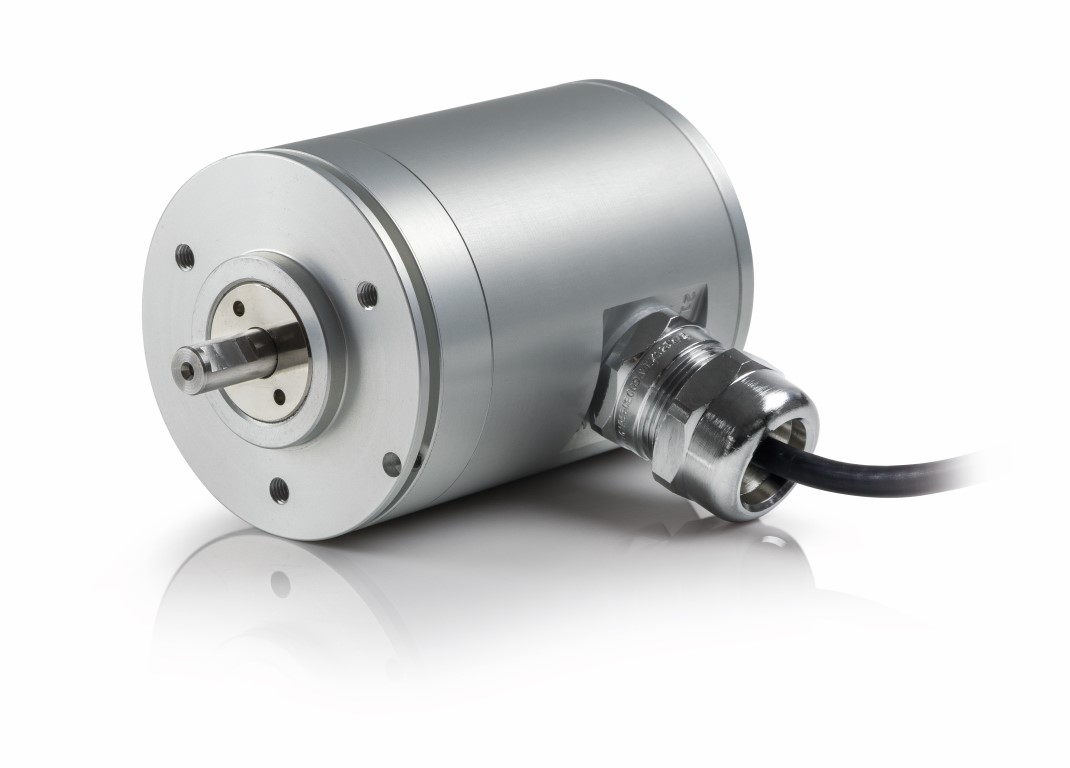

Description of EAX 80 A-D
Flameproof EAX 80 (ø 80 mm) singleturn absolute encoder, certified for potentially explosive and hazardous areas (ATEX). Resolution up to 8.192 ppr (13 bit), up to 28 V dc input voltage with SSI electronic output.
| Technical features | |
|---|---|
| Tipology | Rotary with bearing |
| Category | Singleturn absolute |
| Mechanics | Albero sporgente |
| Technology | Optical |
| Size [mm] | 80 |
| Shaft [mm] | 10 |
| Singleturn max resolution [bit] | 25 |
| IP | 65 |
| Output interface | SSI |
| Markings / Certifications | ATEX, CE / UKCA, UL / CSA |
| Operating temperature [°C] | 0, 50 |
